Water Web™ Water Maze

Made up of a grid of individually controllable rain manifolds, Technifex’s Water Web™ is capable of creating variable mazes for waterparks, entryways, exhibits and special event facilities. With a push of a button, or a programmed cue, a maze can instantly change configuration.

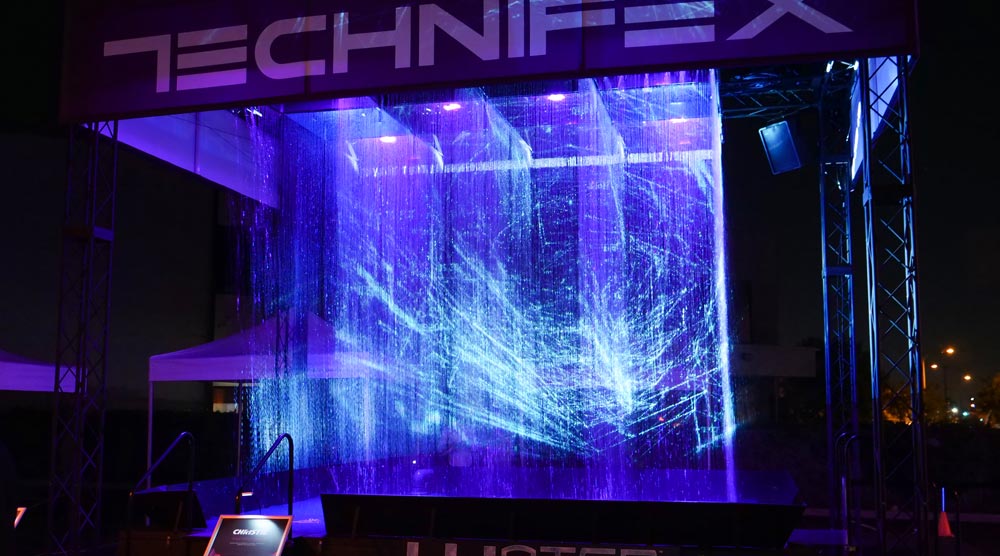

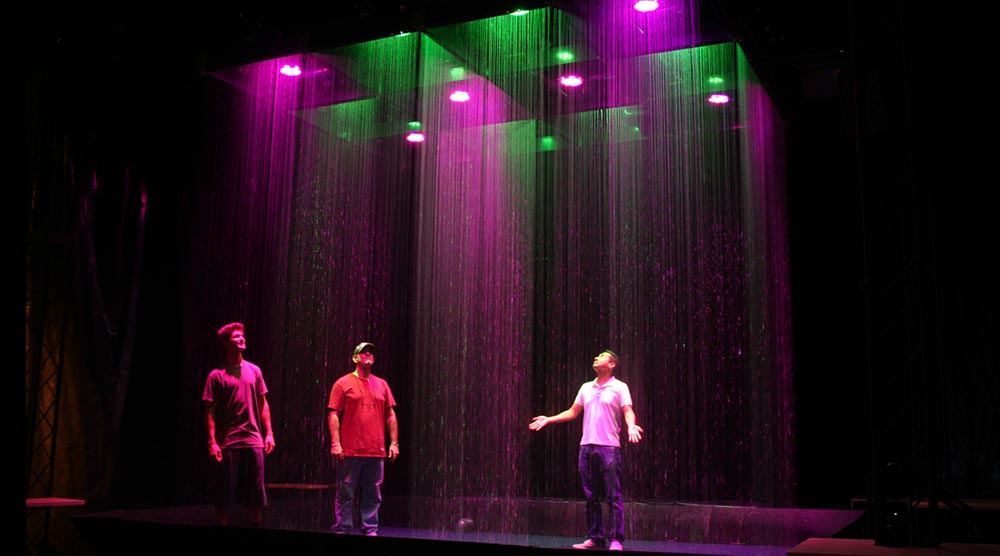

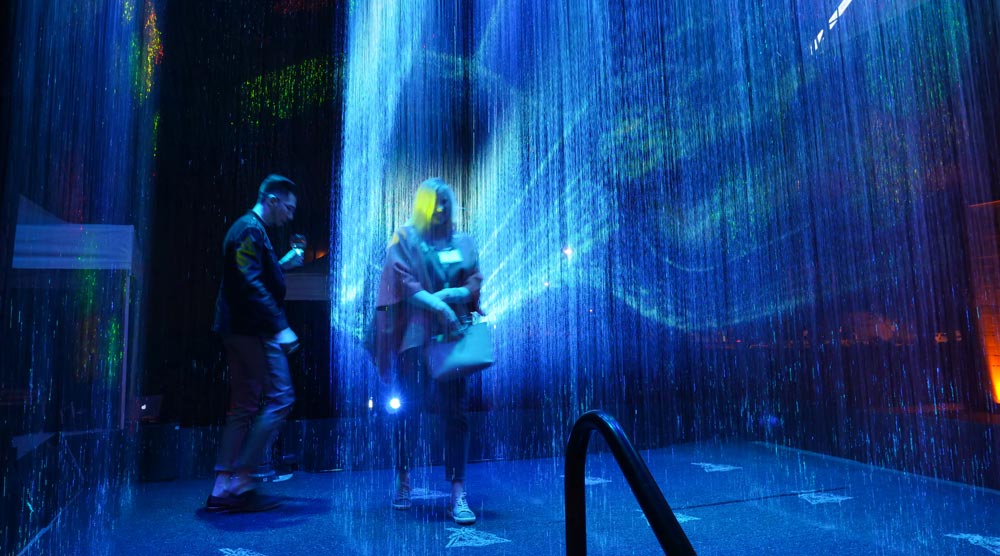

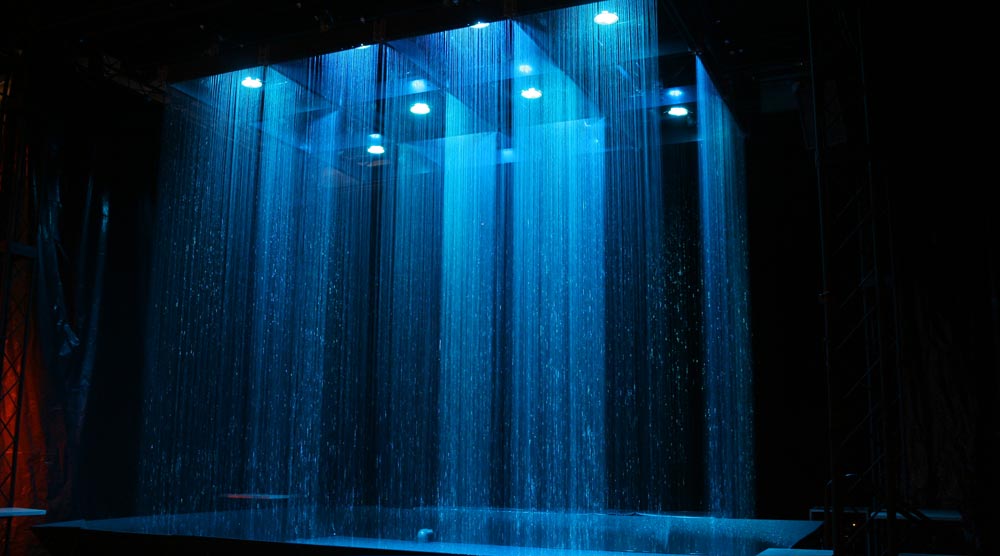

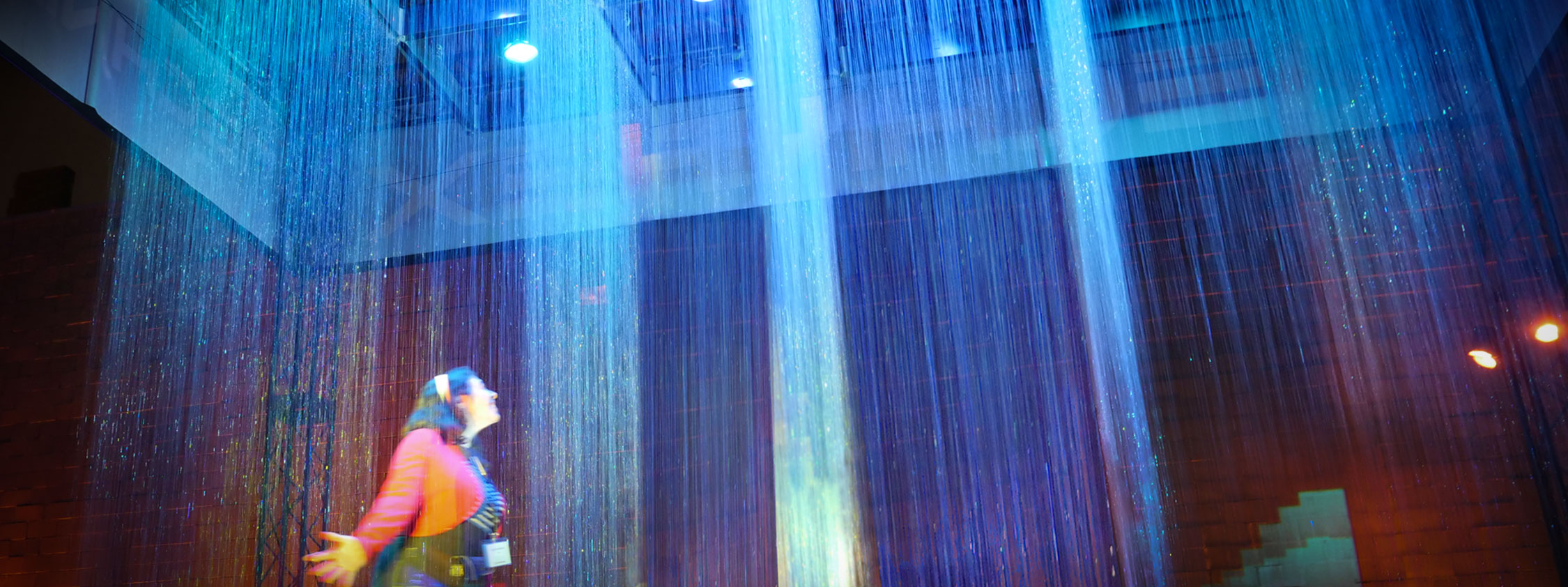

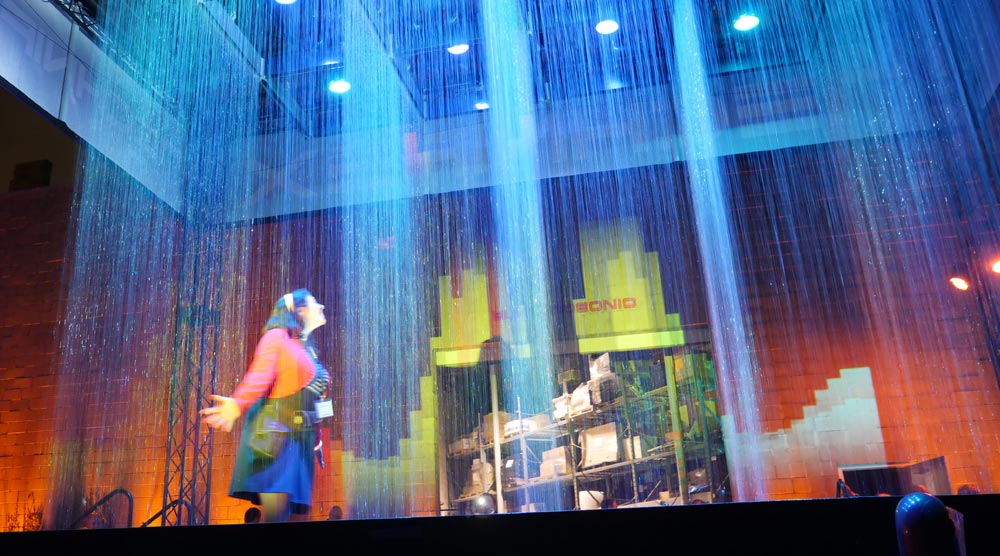

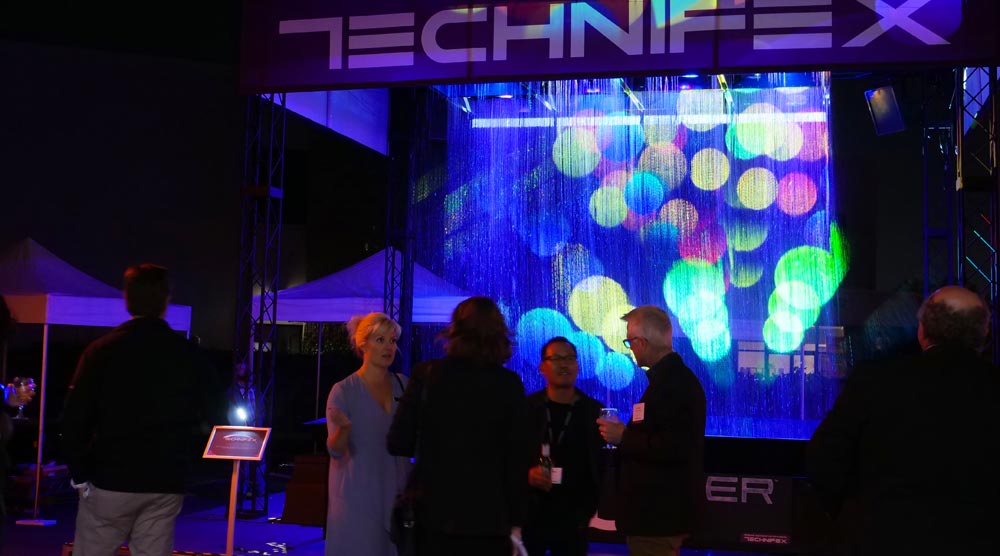

During the day, Water Web™ can act as an interactive play feature. At night, or under controlled lighting conditions, Water Web™ becomes a dynamic show piece. Utilizing color changing lighting and projected imagery, Water Web is a mesmerising night time attraction, backdrop for a concert, or unique and interactive special event in a nightclub.

Products_Fusion_01
Products_Waterweb_Slide_03
Products_Fusion_03
Products_Fusion_04
Products_Fusion_05
Products_Fusion_02

Patent Numbers: U.S.A.
9,440,251 B2 | 8,807,452 B2 | 10,076,764 B2
Patent Numbers: Canada
2,732,731 | 2,937,437| 2,937,563

Video

Price Request Form

****NOTE: For Custom Size and Shapes – Please Contact Us

    Your Name (required)

    Company

    Mailing Address

    City

    Country,State/Province

    Zip/Postal Code

    Telephone

    Your Email (required)

    Project Location (required)

    Products-Water-Web-09

    Select the Number of Modules

    Control and Facility

    (Web Control, Lighting and Pump Control)

    (Required for operating the Water Web module(s))
    (For outdoor cold weather operations)

    Accessibility

    (ADA compliant. Optional for mobile systems or above ground pool)
    (Entrance and Exit, Required for mobile systems or above ground pool)
    (For above ground pool or for facilities that cannot accommodate an ADA compliant ramp)

    Audio System

    (4 Midrange Speakers, Subwoofer, Digital Storage, Amplifier and Rack)

    Truss System

    (Structure to support the Water Web)
    (Roof structure above the truss, necessary for outdoor applications)

    Pool

    For permanent installation you may choose to construct the required pool into your facility, Technifex will provide the required specifications. Note: a mobile/temporary system will required a pool system.
    (Required for mobile/temporary systems)
    (Pool provided by your facility)

    (For outdoor applications)

    Lighting

    (Waterproof high output LED down lighting)

    Additional Request or Questions

    Specifications

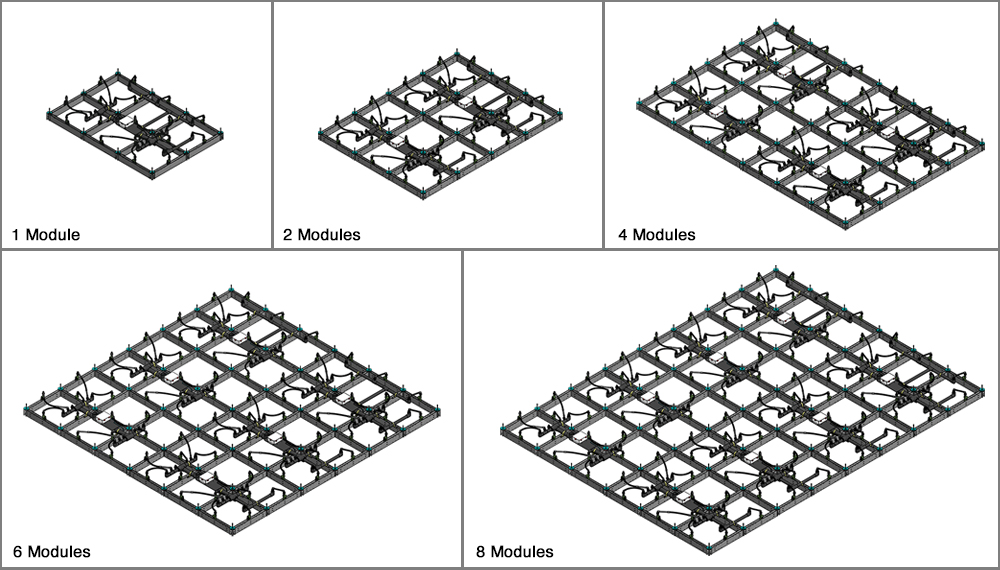

    • Modules (Approximate Dimensions)
      • 1 Module = 124″ x 83″ (3.14m x 2.10m)

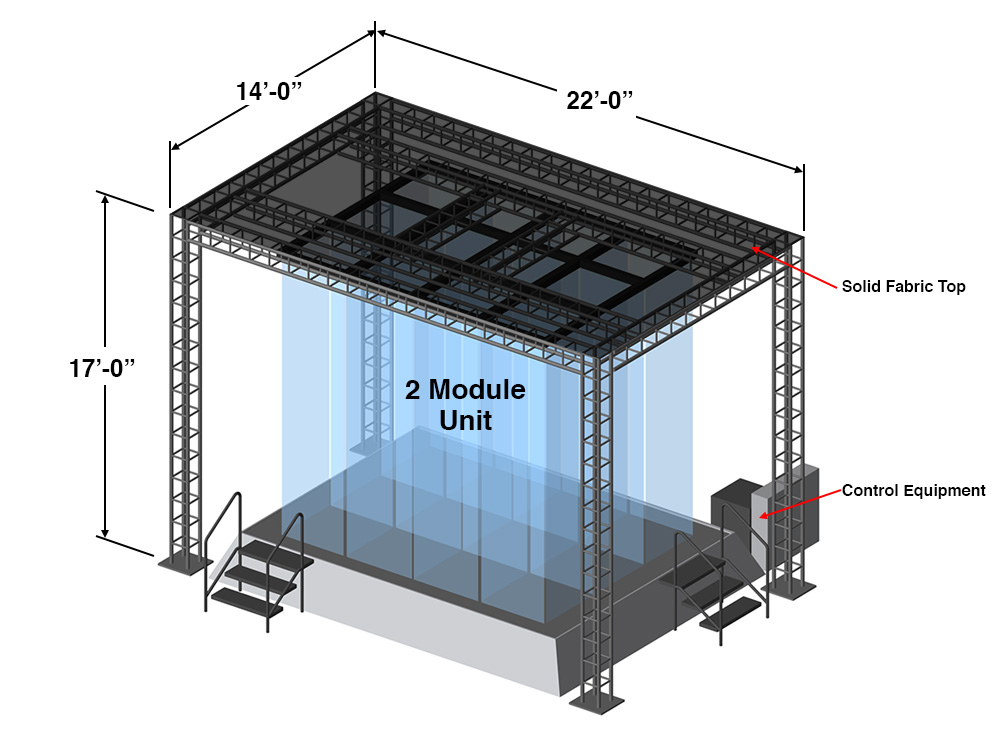

      • 2 Modules = 124″ x 165″ (3.13m x 4.19m)
      • 4 Modules = 248″ x 165″ (6.29m x 4.19m)
      • 6 Modules = 248″ x 248″ (6.29m x 6.29m)
      • 8 Modules = 248″ x 330″ (6.29m x 8.38m)
    • Installation Types
      • Permanent – Permanent installation into your facility.You may choose to construct the required pool at your facility.(Technifex will provide the required specifications.)
    • Control and Facility Options
      • DMX Control System (Web Control, Lighting and Pump Control)
      • Water Pumps & Overhead Plumbing
      • Compressed Air System (Required for operating the Water Web modules)
      • Pool Water Heater (For outdoor cold weather operations)
    • Accessibility Options
      • ADA Compliant Ramp (ADA compliant. Optional for mobile systems or above ground pool)
      • Stairs (2 sets) (Entrance and Exit, Required for mobile systems or above ground pool)
      • Wheelchair Lift (For above ground pool or for facilities that cannot accommodate an ADA compliant ramp)
    • Audio System Options
      • Audio System (4 Midrange Speakers, Subwoofer, Digital Storage, Amplifier and Rack)
    • Truss System Options
      • Structural Truss (Structure to support the Water Web)
      • Structural Canopy and Apron (Roof structure above the truss, necessary for outdoor applications)
    • Pool Options
      • A mobile/temporary system will required a portable pool system supplied by Technifex.
      • Pool, Grating, Splashmat and Water Filtration System (Required for mobile/temporary systems)
      • Grating, Splashmat and Water Filtration System ONLY (Pool provided by your facility)
      • Pool Perimeter Handrails and Splash Guards
      • Pool Electrical Bonding (For outdoor applications)
    • Lighting Options
      • Lighting System (Waterproof high output RGB LED down lighting)
    • Video Projection Option
      • Projection System – Additional info will be required to determine specific pricing. Please provide us a brief description of the location of the installation and the area around the proposed Water Web. Technifex may need to contact you and request additional information such as a floor plan to determine if a video projector can be used based on your facility constraints.
