FauxFire® AfterBurner

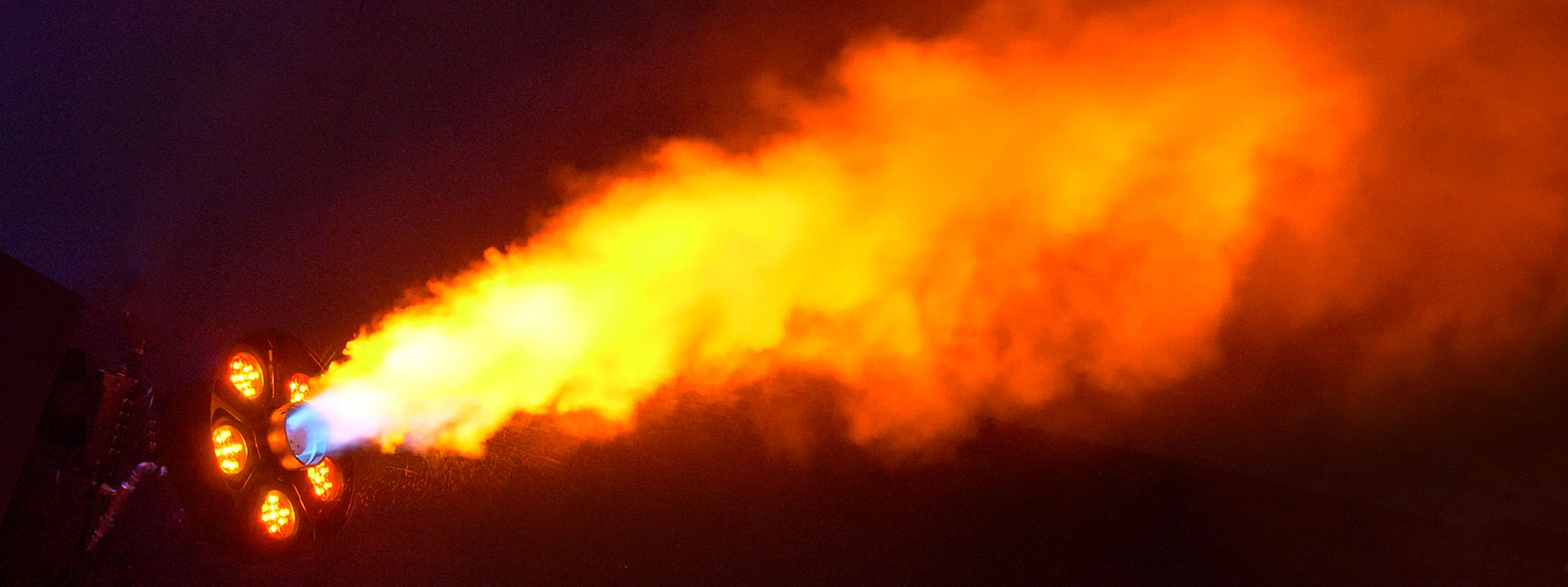

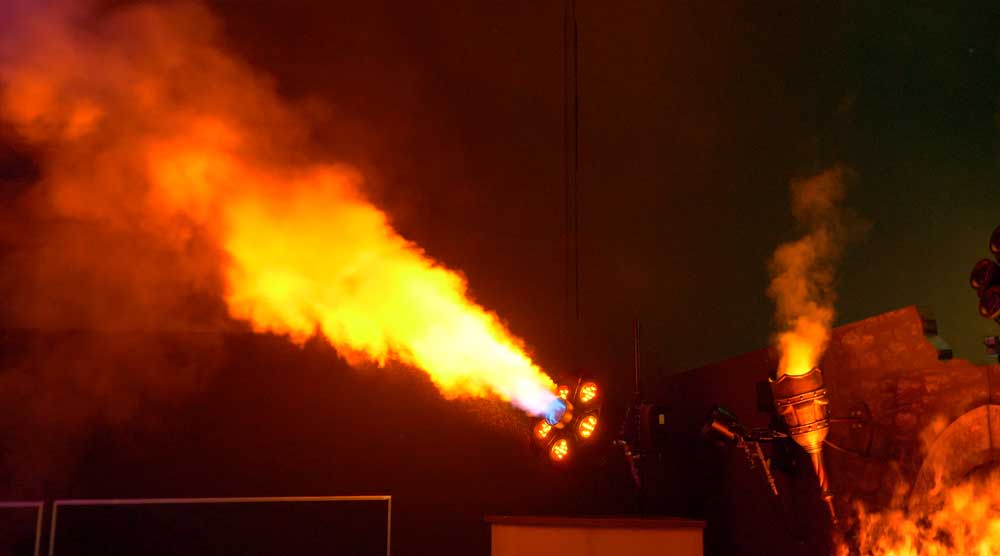

The FauxFire® Afterburner is the most realistic simulated flame blast in the world! Using our latest FauxFire® technology, Technifex has created a steam-based system that produces a powerful blast of “flame” that looks like it is exiting a jet engine. Fully controllable and scalable, the FauxFire Afterburner is perfect for use in dark rides, haunted houses, concerts and theatrical presentations.

NOTE: The FauxFire effect is NOT generally used for outdoor applications because there is usually limited control over air currents (wind) and ambient light levels. However, the system can be utilized outdoors at night, if the conditions are controlled.

**FauxFire® AfterBurner Effect require a Steam Boiler or Facility Steam Supply. Technifex can make recommendations on equipment and steam requirements.**

Using our latest FauxFire® technology, Technifex has created a steam-based system that produces a powerful blast of “flame” that looks like it is exiting a jet engine.

  • Uses steam and compressed air
  • “Flame” size: Small = 4-6 Feet (1.2 – 1.8m) Medium = 8-12 Feet (2.4 – 3.6m) Large = 12-18 Feet (3.6 – 5.4m)
  • Housing is scalable to meet attraction requirements
  • Can be used wherever real fire is not an option
  • 360 degrees of viewing
  • Easy to operate and very low maintenance
  • Completely self-contained (With the exception of a steam supply)
  • Includes long life RGB LED lighting
  • DMX input for LED lighting and steam valves
  • Best if used indoors, under controlled lighting

Video

Specifications

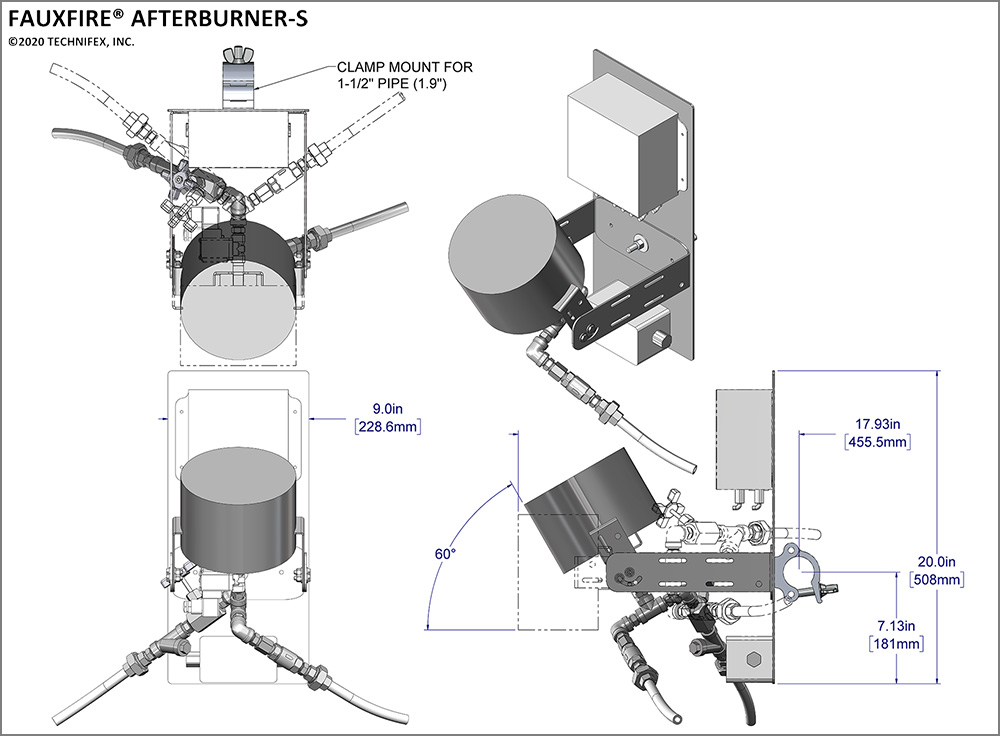

AFTERBURNER – SMALL

  • Dimensions (W x H x D): 9.0” x 20.0” x 17.93” (228.6mm x 508mm x 455.5mm)
  • Weight: 25 lb (11.3kg)
  • Power Requirements (one unit): 120 VAC, 1A
  • Steam Supply: 90 psi, 40 lb/hr Consumption
  • Compressed Air: No Air Required
  • Control Requirements: DMX input
  • Drain to Facility: 1 gal/hr

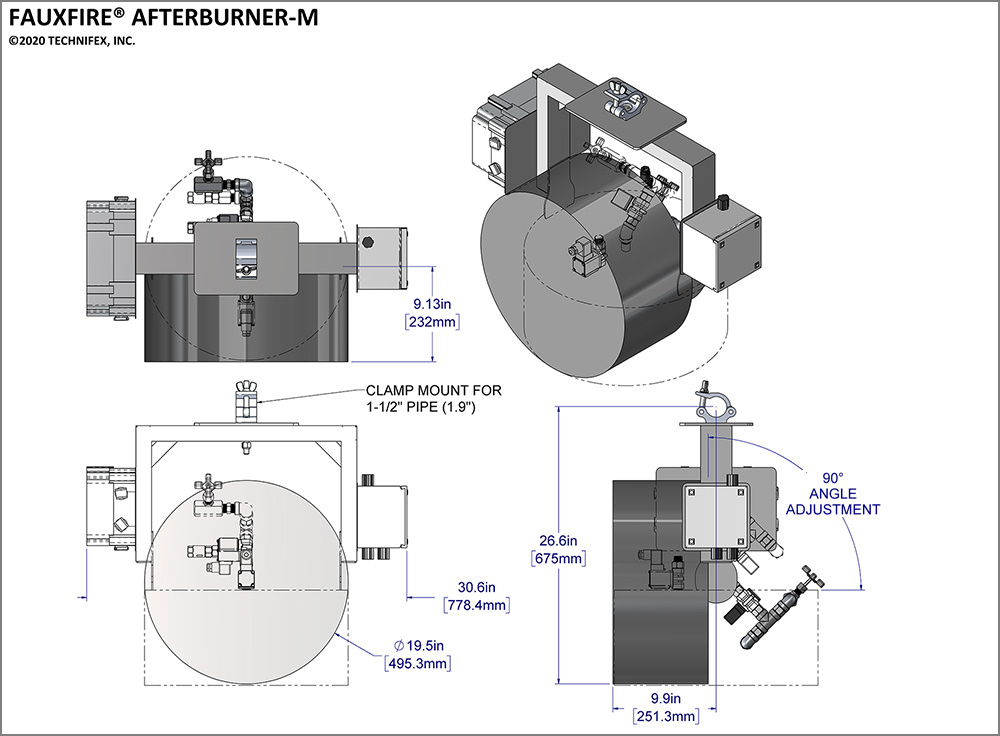

AFTERBURNER – MEDIUM

  • Dimensions (W x H x D): 30.6” x 26.6” x 19.5”* (778.4mm x 675mm x 495.3mm*)

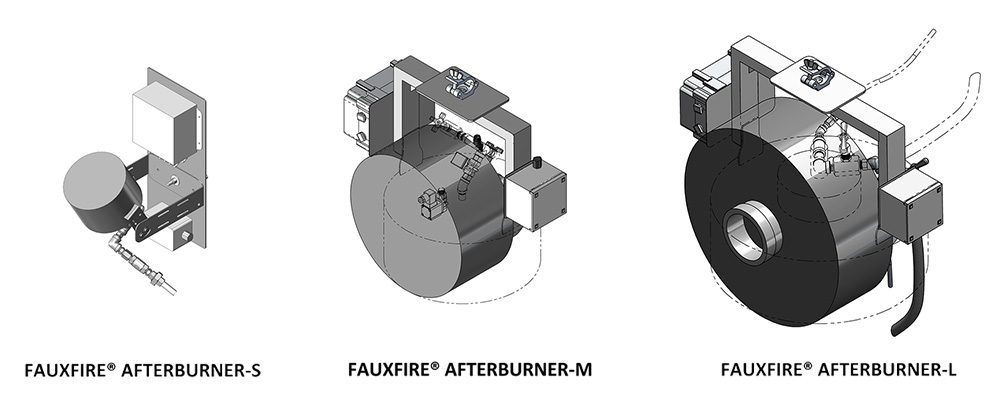

    * See Diagram – Dependent on Orientation
  • Weight: 106 lb (48kg)
  • Power Requirements (one unit): 110-277 VAC, 2A
  • Steam Supply: 90 psi, 164.76 lb/hr Consumption
  • Compressed Air: 90 psi
  • Control Requirements: DMX input
  • Drain to Facility: 1 gal/h

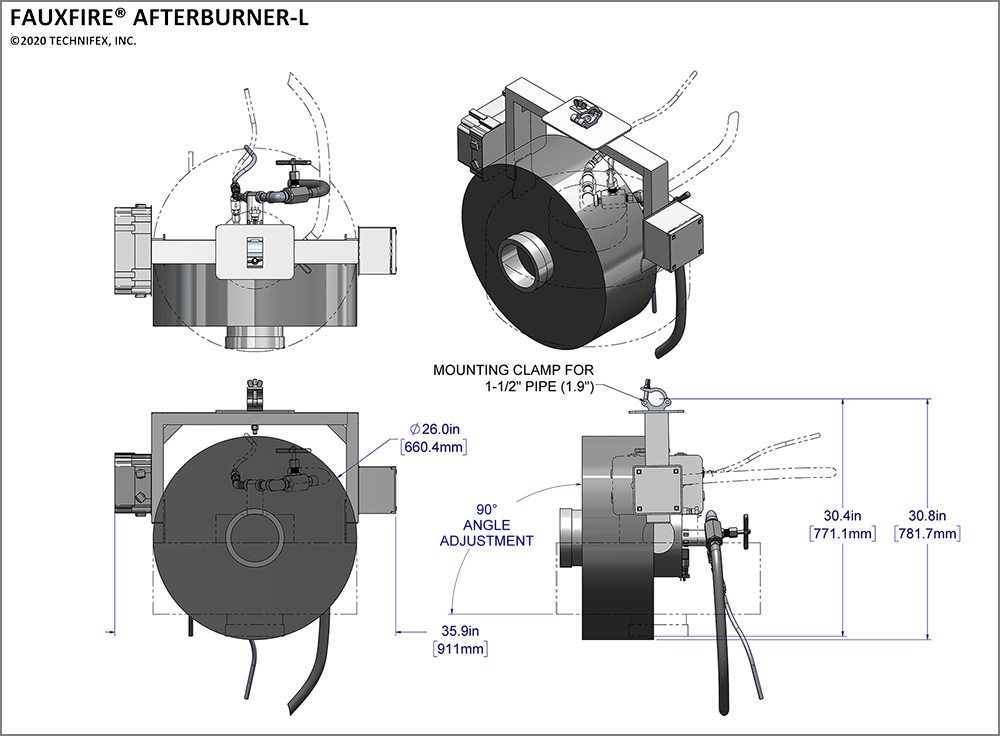

AFTERBURNER – LARGE

  • Dimensions (W x H x D):35.9” x 30.8” x 26.0* (911mm x 781.7mm x 660.4mm*)
    * See Diagram – Dependent on Orientation
  • Weight: 168 lb (76kg)
  • Power Requirements (one unit): 110VAC, 15A
  • Steam Supply: 90 psi, 344.36 lb/hr Consumption
  • Compressed Air: 90 psi
  • Control Requirements: DMX input
  • Drain to Facility: 5 gal/hr
