FlowScreen®

Technifex’s patented Flowscreen® combines cascading water and LED lighting to create a unique and versatile display. Flowscreen can add a dynamic element to your corporate lobby, restaurant entrance, retail store, or trade show display.

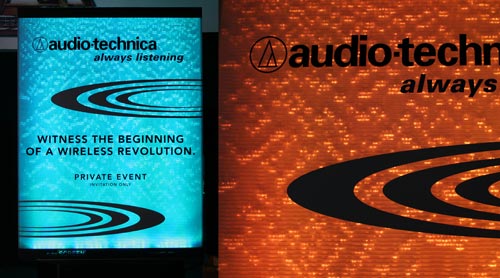

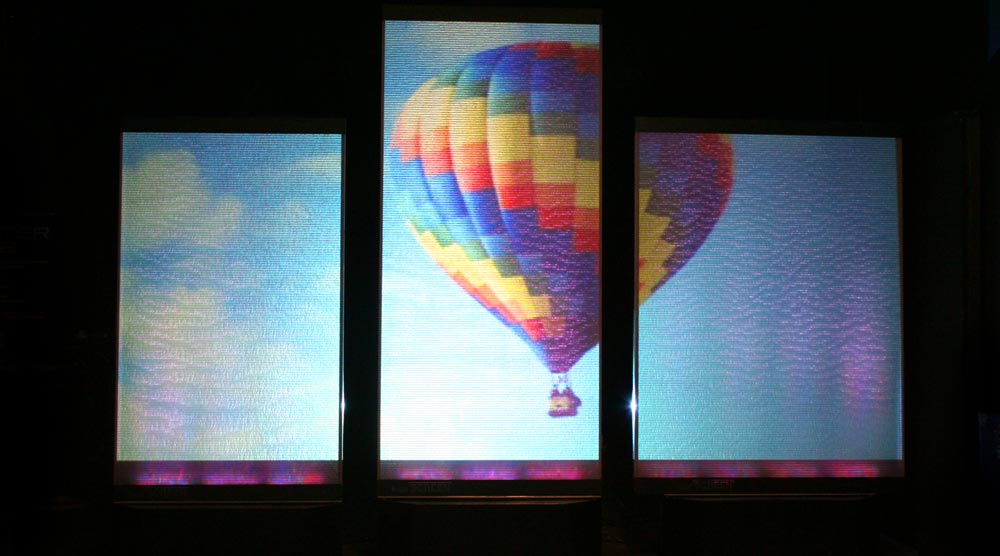

With its built-in LED lighting, Flowscreen produces a beautiful up-lit wall of colored flowing water that can be enhanced by adding rear-projected video images to deliver your corporate message. For a static message or display, vinyl graphics can be added to the front side of the Flowscreen.

Standard Flowscreens are available in 4’x8’, 4’x10’ and 5’x8’ sizes and can be linked together to form larger display walls. Flowscreens can also be fabricated in custom sizes.

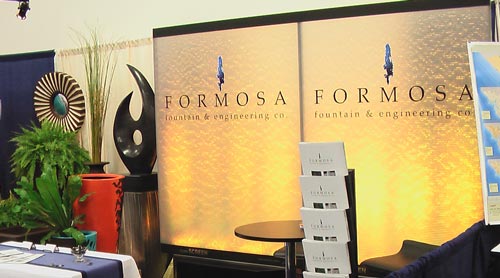

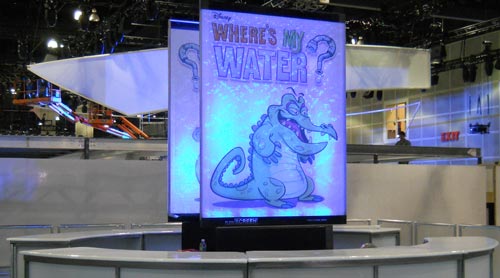

  • Enhance your special event or trade show booth
  • Unique display medium

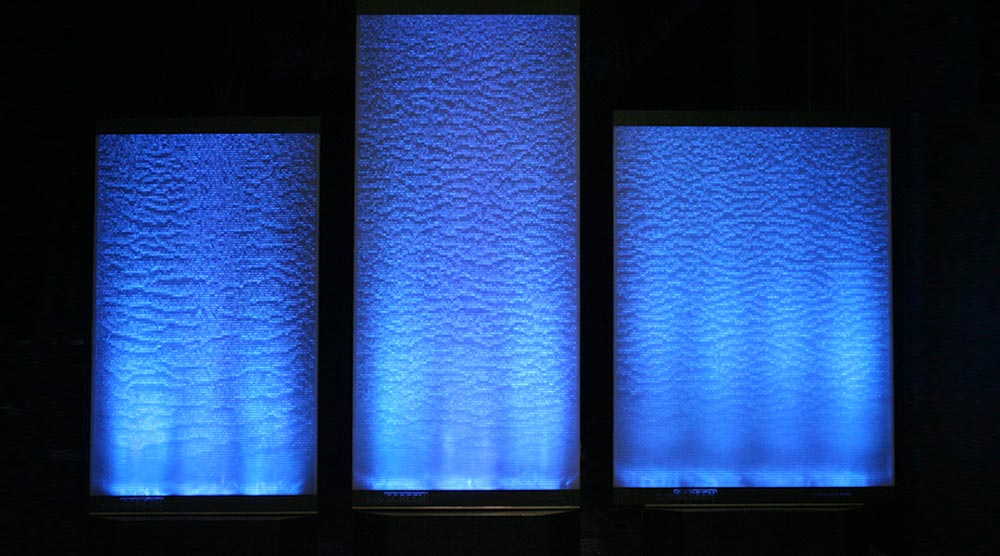

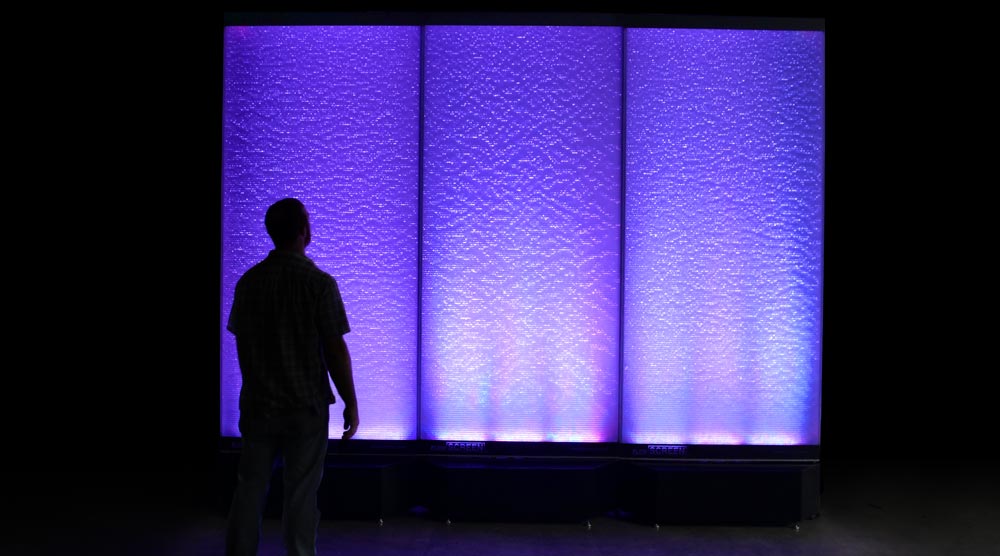

  • Create a stunning wall of colored flowing water
  • Built-in LED lighting
  • Lighting can change to virtually any color

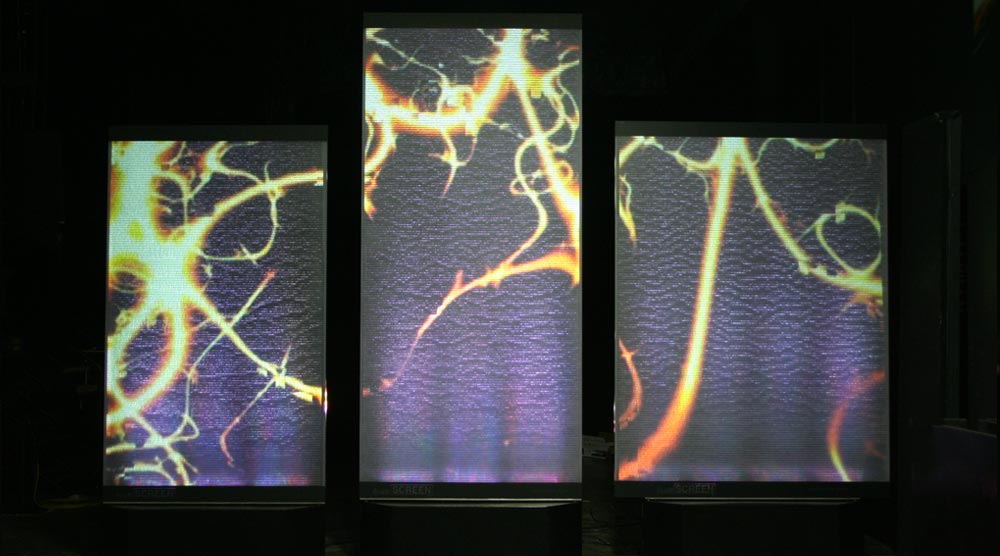

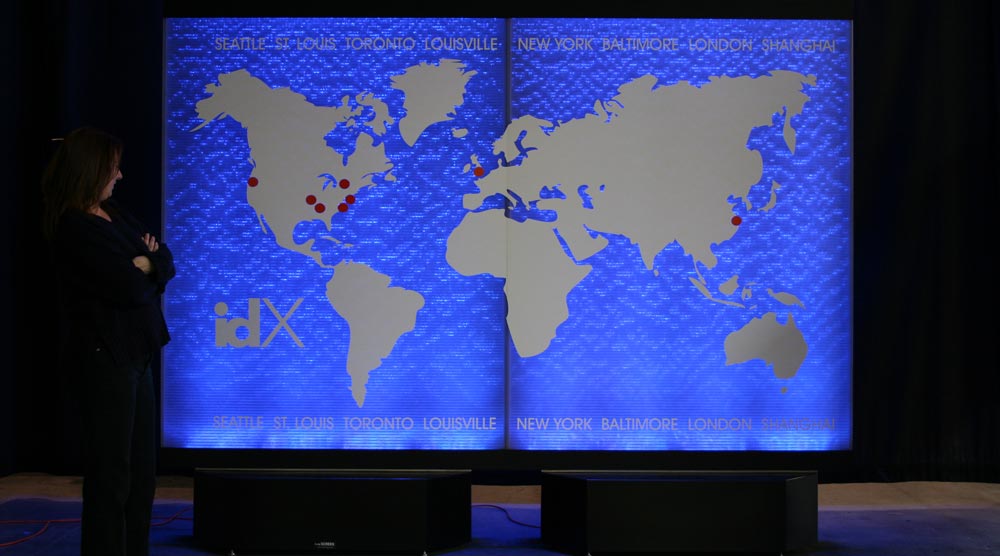

  • Project your corporate video
  • Add messages using vinyl appliqués

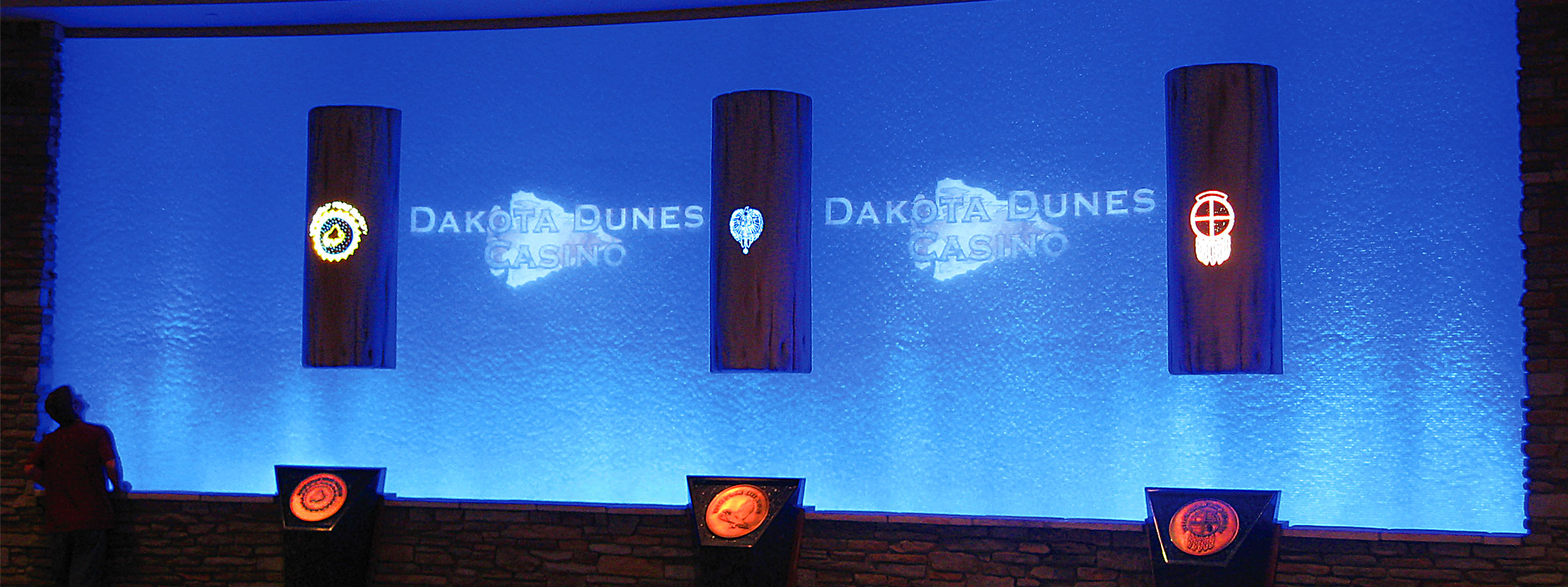

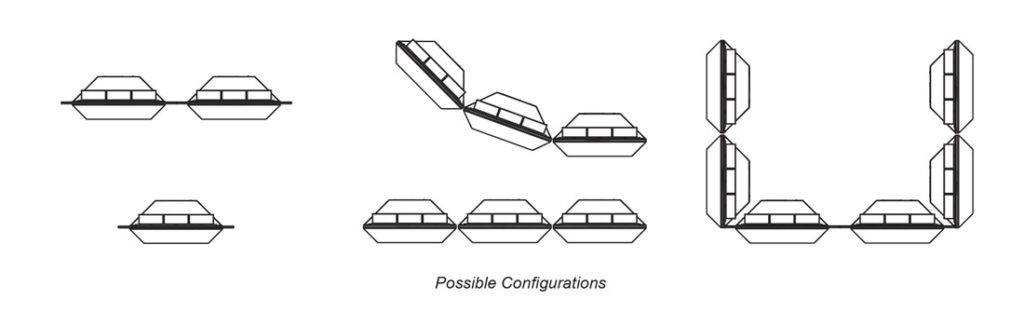

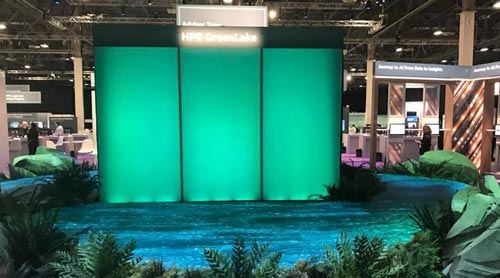

  • Create room walls using multiple screens
  • Available for Purchase or Rental

Patent Numbers (U.S.A)
6,731,429 B2

Pricing

  • Rental Pricing
    • 4′ width x 8′ height – $650/Show Day*
    • 4′ width x 10′ height– $700/Show Day*
    • 5′ width x 8′ height– $700/Show Day*
      (example: a 4×8 unit rental for a three day show/event will cost $1950.00 for one Flowscreen unit)
      NOTE: Video projector or video player not included.
      *Rental Prices subject to change
    • Shipping Cost to be determined when quantity and destination are known.
  • Minimum Rental Period
    • There is a two (2) Show Day minimum rental* for each unit rented. You will not be charged for set-up days or transit days unless the transit exceeds a cumulative total (inbound and outbound) of more than eight days. If the cumulative total exceeds eight days, Technifex reserves the right to charge the daily rental fee for each unit, unless prior arrangements are made and agreed to by Technifex.
      * 1 Show Day Rental = only in the greater Los Angeles Area
  • Purchase Pricing

Products_Flowscreen_Slide_01
Products_Flowscreen_Slide_04
Products_Flowscreen_Slide_02
Products_Flowscreen_Slide_05
Products_Dakota_01

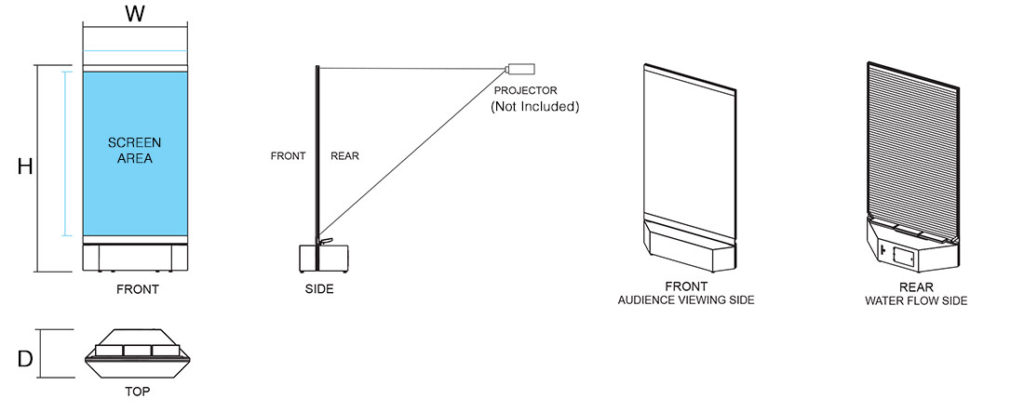

Specification

Dimensions:

  • 4′ x 8′ Unit
    • 48″ width x 95″ height x 22″ depth (overall)
    • 46 1/2″ width x 74 3/4″ height (viewable screen area)
  • 5′ x 8′ Unit
    • 60″ width x 95″ height x 22″ depth (overall)
    • 59″ width x 74 3/4″ height (viewable screen area)
  • 4′ x 10′ Unit
    • 48″ width x 119″ height x 22″ depth (overall)
    • 46 1/2″ width x 99 3/4″ height (viewable screen area)

Weights:

  • 4’x8′ Weight: 330 lbs. (150lbs screen + 180lbs base)
  • 4’x10′ Weight: 350 lbs. (170lbs screen + 180lbs base)
  • 5’x8′ Weight: 350 lbs. (170lbs screen + 180lbs base)

Power Requirements:

  • You will need: (1) 10A @ 120VAC, 60Hz for each Flowscreen unit. This does not include power for a projector or video player.

Water Consumption:

  • It depends on ambient temperatures, but the units will typically run for 10-16 hours without refilling.
  • Permanent systems can be designed with auto-fill options.

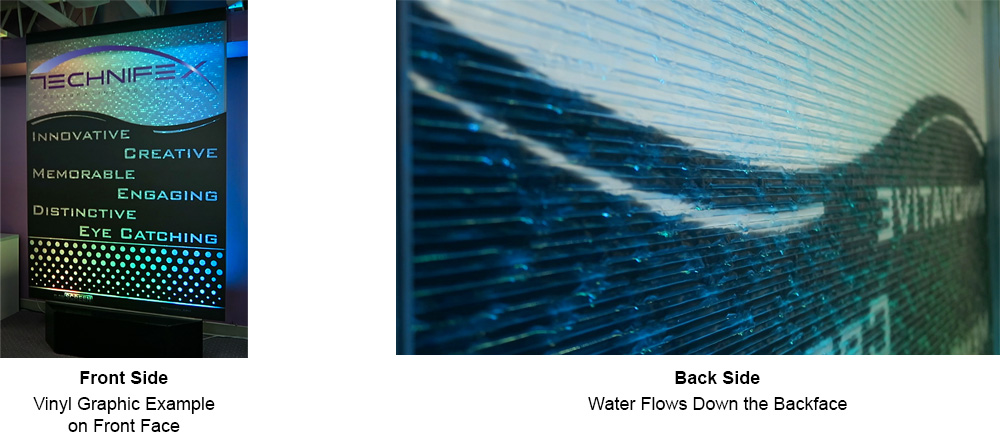

Vinyl Graphics:

  • Vinyl graphics can be applied to the front surface.

Video Projections:

  • Does not include video projector but we can make recommendations.

See FAQ sections for more information.

Flowscreen® FAQ

  • What sizes are the Flowscreen’s?
    • 4 x 8 Unit
      • 48″ width x 95″ height x 22″ depth (overall)
      • 46 1/2″ width x 74 3/4″ height (viewable screen area)
    • 5 x 8 Unit
      • 60″ width x 95″ height x 22″depth (overall)
      • 59″ width x 74 3/4″ height (viewable screen area)
    • 4 x 10 Unit
      • 48″ idth x 119″ height x 22″ depth (overall)
      • 46 1/2″ width x 99 3/4″ height (viewable screen area)
  • What is the weight of the Flowscreen?
    • 4’x8′ Weight: 330 lbs. (150lbs screen + 180lbs base)
    • 4’x10′ Weight: 350 lbs. (170lbs screen + 180lbs base)
    • 5’x8′ Weight: 350 lbs. (170lbs screen + 180lbs base)

Venue

  • What are the power requirements?
    • You will need: (1) 10A @ 120VAC, 60Hz for each Flowscreen unit. This does not include power for a projector or video player.
    • Multiple Flowscreen units can be electrically “linked” and cause the RGB colors to change in unison. If you desire to link the units, you must have extra extension cords & plug strips. Technifex can help with these items.
  • Where do I get the water to fill the Flowscreen(s) at an event?
    • Most venues have a convenient water source at the show floor/event. Our maintenance kit provides a 5-gallon pail to get water from the water source (the unit holds 8 gallons).
    • This same container is used to empty the base when your event is over (instructions for empting Flowscreen reservoirs are in the manual provided).
  • How long will a Flowscreen run on a single fill of water?
    • It depends on ambient temperatures, but the units will typically run for 10-16 hours without refilling.
    • It’s a good idea to check the water level periodically throughout the event.
    • An auto-fill system can be designed and provided for permanent installations.

Artistic/Marketing Considerations

  • Can the Flowscreen’s be linked together to change colors simultaneously?
    • If you are renting more than one Flowscreen, they can be linked together so that the color changes are synced. Contact Technifex for cable availability.
  • Can the colors be changed with an external lighting controller?
    • Yes, the colors can be changed using a DMX external lighting controller (Technifex can provide details). The lighting can change to virtually any color. You will need cables to link the Flowscreen’s to the lighting controller (not supplied by Technifex).
  • Can any special graphics be applied on the Flowscreen?
    • Yes, vinyl appliqués can be applied.

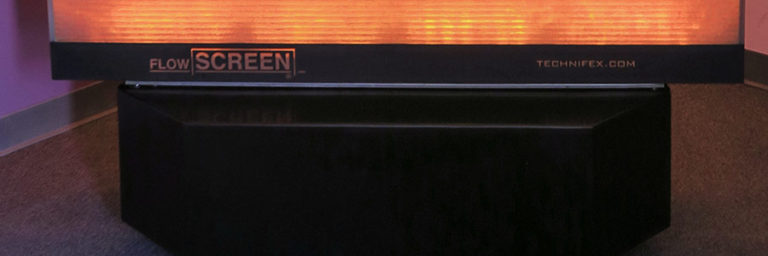

  • Is there any Technifex branding on the units?
    • There is some labeling on the lower part of the screen.
